Coffee roasting recording software

Here's how to use it:

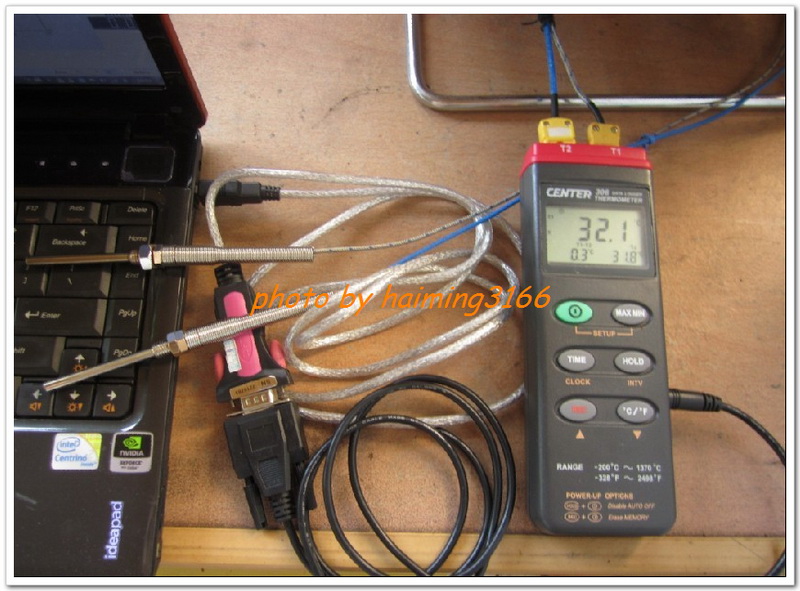

1. Required accessories: thermometer (CENTER 306), RS-232 data cable (adjacent to thermometer), USB TO RS-232 adapter (if the computer has a RS-232 interface, it needs to be equipped with this cable to connect to the computer)

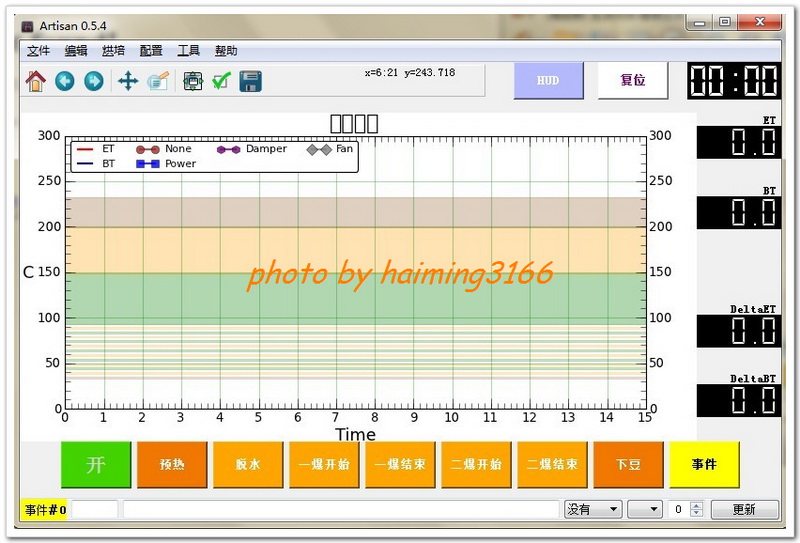

Software interface

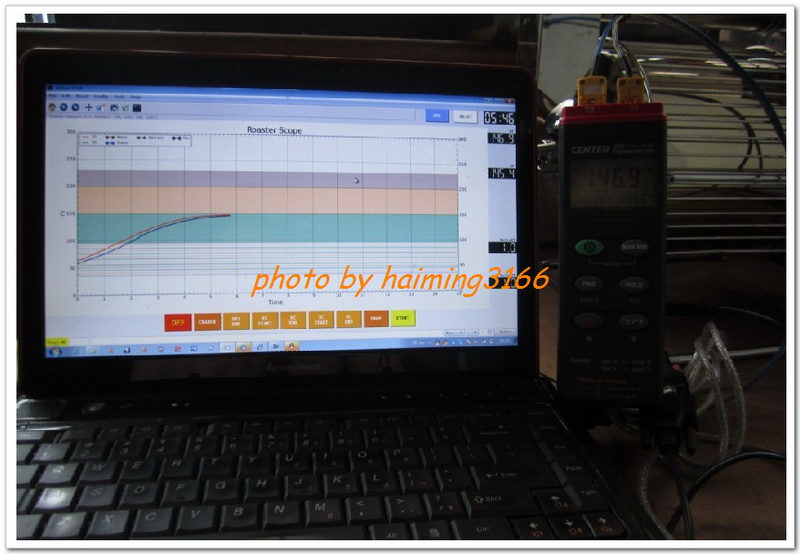

First install the USB TO RS-232 adapter driver, which is connected to the rs-232 data cable, thermometer and computer USB interface.

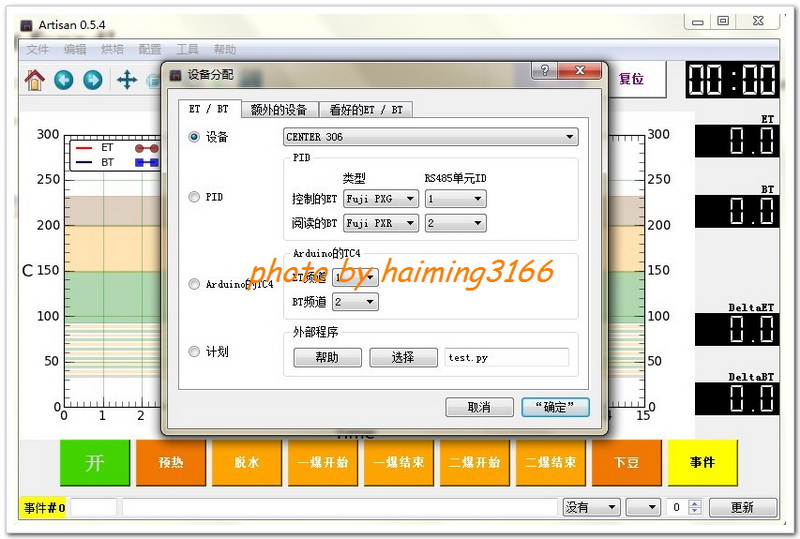

Then type a piece-- set up the equipment-- assign the equipment-- select the device CENTER 306 (thermometer model), and make sure-- scan the serial port (will fight slowly).

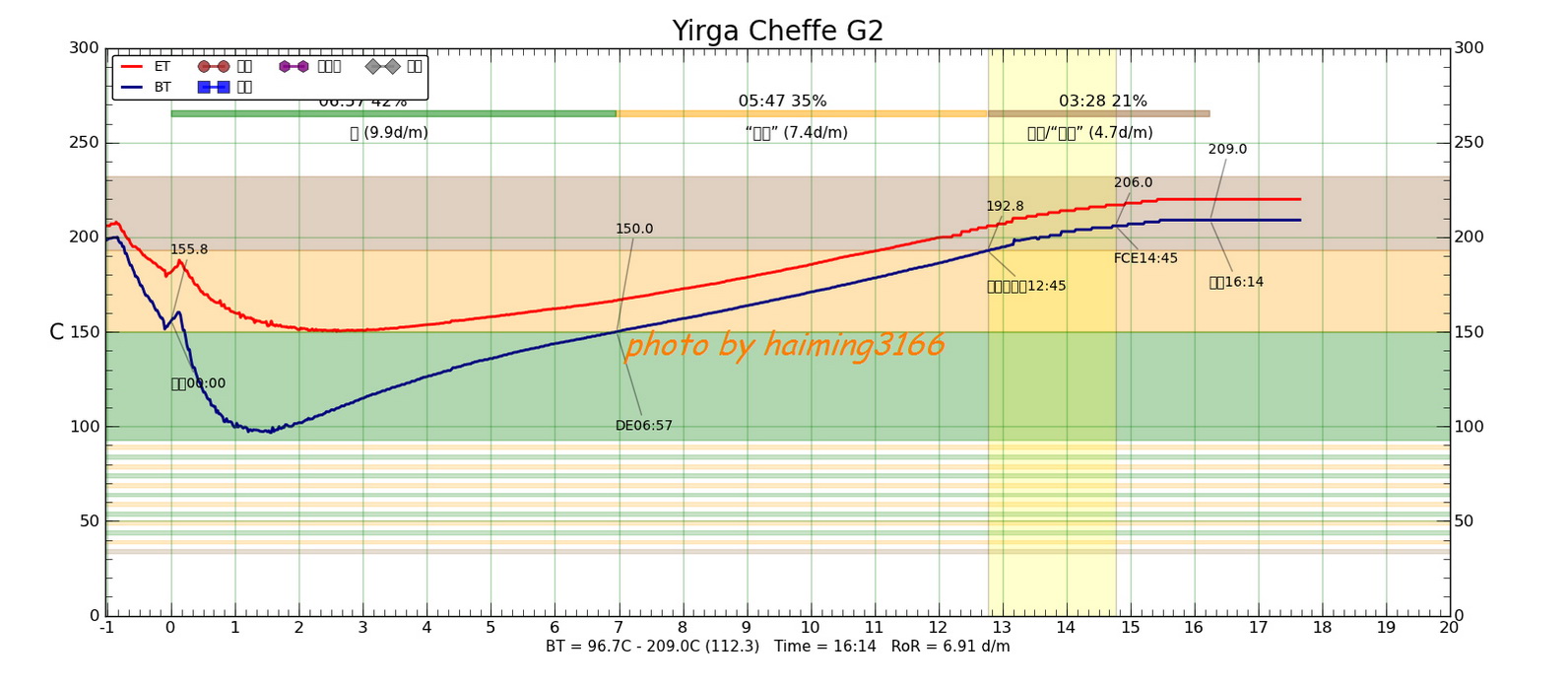

Try to bake the baking curve of Yega Xuefei washing G2.

Remember at the beginning-- preheating-- dehydration-- first explosion-second explosion-second explosion end-Xiadou.

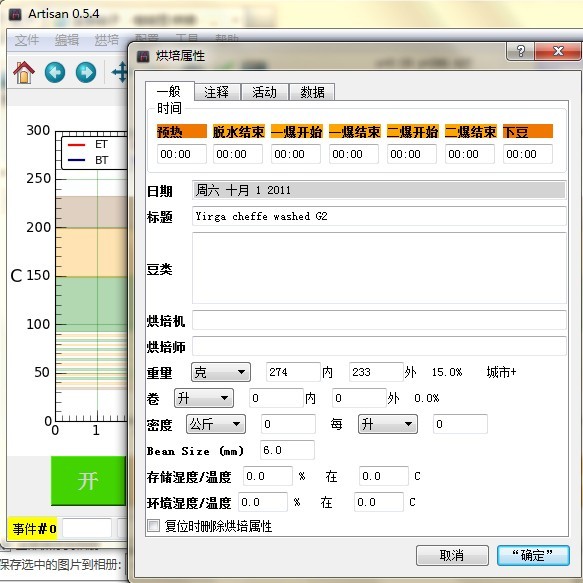

Can also add buttons, record throttle, firepower and other information.

Yejia Xuefei cooked beans photos
